Ultrasound-guided procedures have become increasingly important in modern minimally invasive medicine, especially in regional anesthesia, pain management, vascular access, and diagnostic interventions. During these procedures, clinicians rely on real-time ultrasound imaging to accurately identify the needle position and guide insertion.

However, not all needles perform equally under ultrasound imaging. A conventional standard needle may have limited visibility, while an ultrasound visible needle is specially designed with enhanced echogenic properties to improve visualization.

Understanding the differences between an ultrasound visible needle and a standard needle helps healthcare professionals select the appropriate nerve block needle or puncture needle for different clinical applications.

Key Takeaways

• An ultrasound visible needle is designed with echogenic features that enhance visibility under ultrasound imaging.

• Standard needles may produce weaker ultrasound reflections, making needle tracking more challenging.

• Ultrasound visible needles are commonly used in regional anesthesia, nerve blocks, and minimally invasive puncture procedures.

• Choosing the right nerve block needle or puncture needle can improve procedural confidence and efficiency.

• Needle design, tip visibility, gauge size, and application requirements influence clinical performance.

1. What Is an Ultrasound Visible Needle?

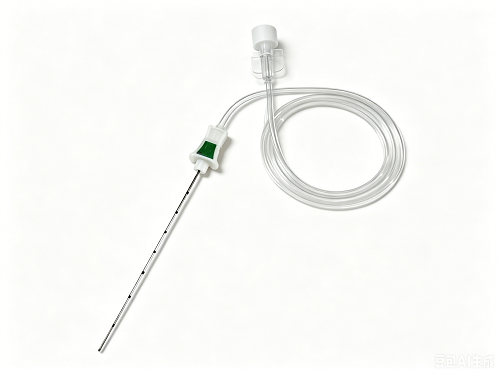

An ultrasound visible needle is a specialized medical needle designed to provide stronger ultrasound reflections during image-guided procedures.

Unlike traditional needles, these ultrasound visible needles incorporate specific surface structures or tip designs that increase echogenicity, allowing clinicians to identify the needle shaft and tip more clearly on ultrasound images.

During ultrasound-guided procedures, the ability to clearly visualize the needle is essential because the clinician needs to monitor:

• Needle entry path

• Needle tip position

• Distance from surrounding tissues

• Relationship between the needle and target anatomy

An ultrasound visible needle is widely used in:

• Peripheral nerve blocks

• Regional anesthesia

• Pain management procedures

• Fluid aspiration

• Diagnostic injections

• Ultrasound-guided puncture procedures

For manufacturers and healthcare providers, selecting a reliable ultrasound visible needle supplier is important to ensure consistent needle visibility and procedural performance.

2. What Is a Standard Needle?

A standard needle refers to a conventional medical needle without enhanced ultrasound visibility features.

Traditional needles are manufactured primarily for basic functions such as:

• Injection

• Fluid collection

• Medication delivery

• General puncture procedures

Although standard needles can be used under ultrasound guidance, their visibility depends heavily on:

• Needle angle

• Ultrasound frequency

• Tissue characteristics

• Operator experience

When the needle is inserted at a steep angle or approaches deeper anatomical structures, a standard needle may become difficult to identify on ultrasound images.

This limitation can create challenges during procedures requiring accurate needle placement.

3. Ultrasound Visible Needle vs Standard Needle: Main Differences

4. Why Is Needle Visibility Important in Ultrasound-Guided Procedures?

In ultrasound-guided procedures, the needle must be accurately positioned while avoiding sensitive anatomical structures.

Poor needle visualization may result in:

• Difficulty tracking needle movement

• Increased procedure complexity

• Longer procedure time

• Reduced confidence during insertion

An ultrasound visible needle improves visualization by creating stronger echoes on ultrasound images.

For example, during a peripheral nerve block procedure, clinicians need to identify the exact relationship between the nerve block needle and surrounding nerves.

Clear visualization allows clinicians to:

• Adjust needle direction in real time

• Confirm needle tip location

• Deliver medication closer to the target area

• Reduce unnecessary needle movement

5. Ultrasound Visible Needle Applications

5.1 Peripheral Nerve Block Procedures

One of the most common applications of an ultrasound visible needle is regional anesthesia.

A nerve block needle is designed for delivering local anesthetic near specific nerves to provide targeted pain relief.

Common applications include:

• Femoral nerve block

• Sciatic nerve block

• Brachial plexus block

• Popliteal nerve block

Compared with standard needles, an ultrasound visible nerve block needle provides better needle visualization during ultrasound-guided nerve localization.

5.2 Ultrasound-Guided Puncture Procedures

A puncture needle is commonly used for accessing tissues, vessels, or fluid spaces.

Applications include:

• Fluid drainage

• Biopsy guidance

• Injection procedures

• Diagnostic puncture

When procedures involve deeper structures, enhanced needle visibility can help clinicians better control needle advancement.

6. Ultrasound Visible Needle Design Features

Modern ultrasound visible needles usually include several design improvements:

Echogenic Needle Tip

The needle tip is the most important area requiring visualization.

Enhanced tip design helps clinicians identify the exact needle location during insertion.

Improved Shaft Visibility

Some ultrasound visible needles use surface modifications to create stronger ultrasound reflections along the needle body.

This helps operators track the complete needle path.

Different Gauge Options

Depending on clinical requirements, ultrasound visible needles may be available in different gauges, including:

• 20G

• 21G

• 22G

• 23G

• 25G

The appropriate gauge depends on:

• Procedure type

• Injection requirements

• Target depth

• Clinical preference

7. How to Choose Between an Ultrasound Visible Needle and Standard Needle?

Healthcare providers should consider several factors:

Procedure Type

For ultrasound-guided regional anesthesia or nerve blocks, an ultrasound visible needle is usually preferred because visualization is critical.

For simple injections, a standard needle may be sufficient.

Target Depth

Deep anatomical targets require better imaging performance.

An ultrasound visible needle can provide advantages when the needle travels through deeper tissue layers.

Clinical Accuracy Requirements

Procedures involving nerves, vessels, or sensitive structures require higher visibility and control.

A specialized nerve block needle can support more predictable needle positioning.

8. Why Choose ShineArk Ultrasound Visible Needles?

ShineArk Medical focuses on developing and manufacturing high-quality ultrasound visible needles for modern minimally invasive procedures.

Our ultrasound visible needles are designed to support:

• Enhanced ultrasound visualization

• Reliable needle positioning

• Consistent manufacturing quality

• Various clinical applications

With professional manufacturing experience in medical needles, ShineArk provides solutions for healthcare distributors, hospitals, and medical device companies seeking dependable nerve block needle and puncture needle products.

FAQ

1. What is an ultrasound visible needle?
An ultrasound visible needle is a medical needle designed with enhanced echogenic features to improve visibility during ultrasound-guided procedures.

2. What is the difference between an ultrasound visible needle and a standard needle?
The main difference is ultrasound visibility. Ultrasound visible needles provide stronger imaging feedback, while standard needles may be harder to track during ultrasound guidance.

3. Why are ultrasound visible needles used for nerve blocks?
Ultrasound visible needles help clinicians clearly identify needle position during nerve block procedures, improving control and accuracy.

4. What is a nerve block needle used for?
A nerve block needle is used to deliver anesthetic medication near targeted nerves for regional anesthesia and pain management.

5. What procedures use puncture needles?
Puncture needles are used in procedures such as fluid aspiration, biopsy guidance, injections, and ultrasound-guided access procedures.

Conclusion

The difference between an ultrasound visible needle and a standard needle mainly comes down to visualization performance under ultrasound imaging. While standard needles remain suitable for general applications, ultrasound visible needles provide significant advantages in procedures requiring accurate needle tracking.

For ultrasound-guided anesthesia, nerve blocks, and minimally invasive puncture procedures, selecting the appropriate nerve block needle or puncture needle can improve procedural confidence and clinical outcomes.

As a professional ultrasound needle manufacturer,ShineArk Medical continues to provide advanced needle solutions designed for modern ultrasound-guided medical applications.
