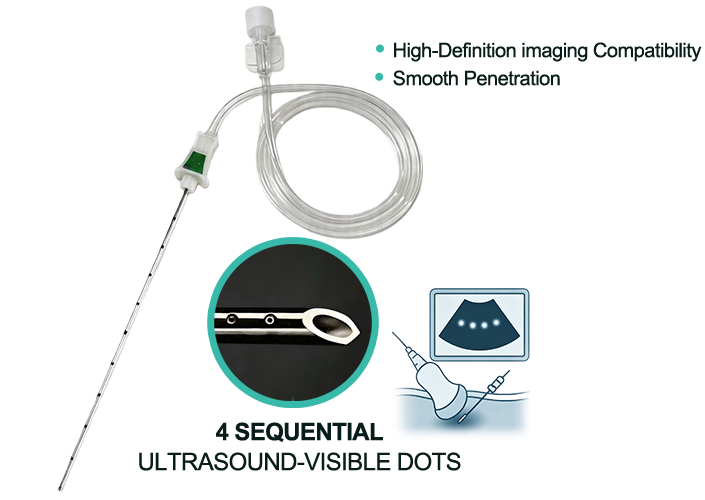

Precision Under Vision: (AN-N/AN-M) Series Nerve Block Needle

Specifically engineered ultrasound nerve block needles for precise regional anesthesia. Achieve pinpoint positioning and significantly reduce nerve damage with our 360° visibility technology and bilateral back bevel design.

<div class='container'><div class='row'><div class='col-sm-4 col-xs-12'><span style='font-size: 14px;background: #dcfce7;color: #166534;padding: 15px 20px; border-radius: 6px; position: relative;top: 30px;'>Regional Anesthesia | Bilateral Back Bevel Tip | CE/MDR Compliant</span><span style='white-space: normal;'></span></div></div></div><br>Precision Under Vision: (AN-N/AN-M) Series Nerve Block Needle

Engineered for Specialists

The AN-N/AN-M Series Ultrasound Visible Nerve Block Needles are not general-purpose needles. Specifically designed for peripheral nerve block procedures and targeted injections, these echogenic needles provide enhanced ultrasound visibility, precise needle positioning and reliable performance during regional anesthesia applications.

Anesthesiology
Ultra-Sound Visible ,Precise positioning, Perfect for all types of peripheral nerve blocks (e.g., Brachial Plexus Block). Dramatically shortens onset time and helps prevent Local Anesthetic Systemic Toxicity (LAST).
Pain Management
Ultra-Sound Visible ,Precise positioning, Ideal for precise local injections and long-term pain interventions. The bilateral bevel navigates tissue smoothly, reducing the risk of complications.

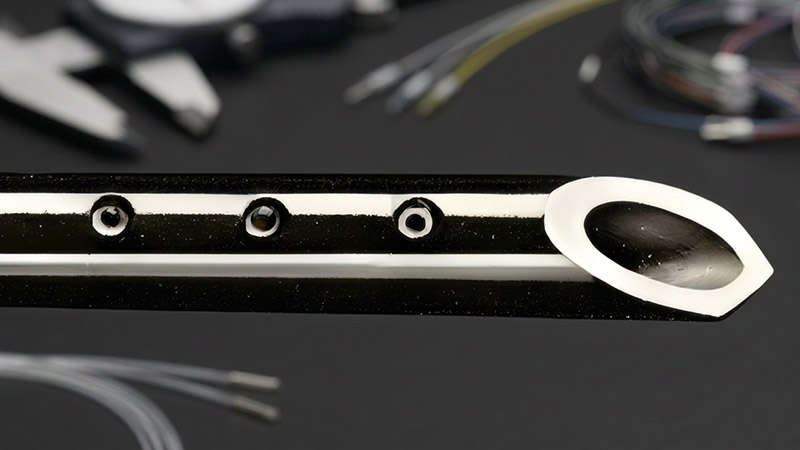

Engineering Excellence: The 4x4 Array Micro-Structure

Not just simple markings, the Ultrasound Guided Nerve Block Needles feature a precision 4×4 array with laser-engraved micro-reflective surfaces, specially designed to enhance ultrasound reflection. This advanced echogenic needle technology represents the manufacturing expertise of a National High-Tech Enterprise, delivering uncompromised ultrasound visibility and consistent performance. By improving needle tip visualization during ultrasound-guided procedures, these ultrasound visible nerve block needles enable accurate positioning and reliable performance for various peripheral nerve block applications.

Principle & Video Demo

By explaining "why it lights up"—leveraging physical principles combined with dynamic, hands-on demonstrations—we thoroughly won over the clinical procurement experts.

Principle
360° Acoustic Reflection Path - Acoustic waves from the ultrasound probe hit the 4x4 array and reflect directly back to the transducer, regardless of the echogenic block needle's insertion angle.
Hands-on Practice
Real-Time Clinical Visibility - Watch how the AN-N/M ultrasound nerve block needles maintains high-brightness tip tracking as it smoothly approaches the target nerve structure.

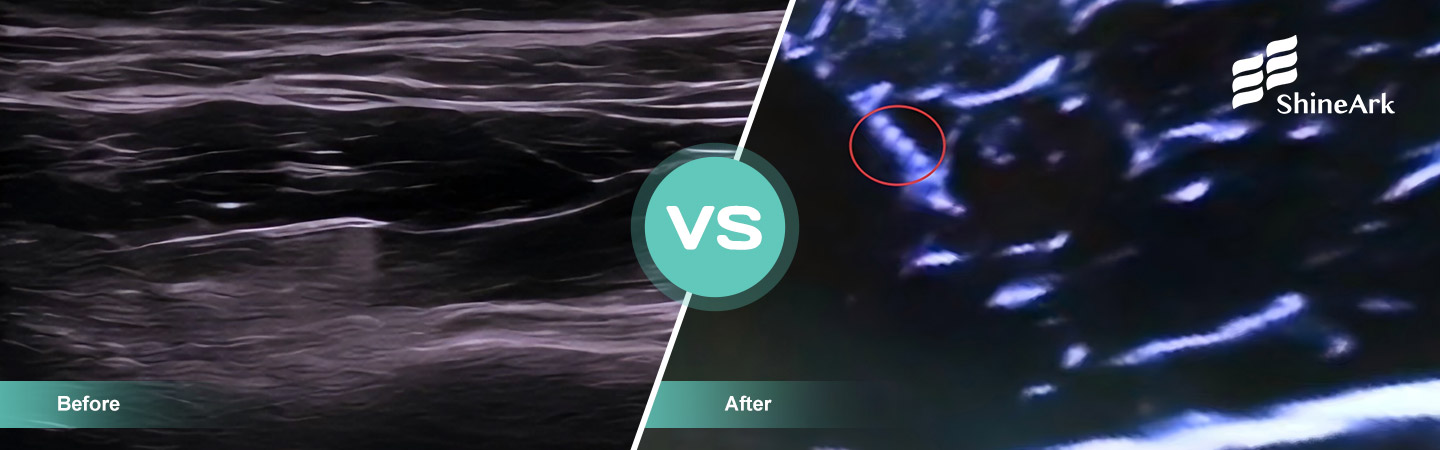

Unbreakable Clinical Evidence: Before & After

Ordinary Blind Puncture Needle

Weak echogenicity. Tissue layers are difficult to distinguish, increasing the risk of accidentally piercing the nerve bundle.

ShineArk AN-N/M Series Echogenic Puncture Needle

High-contrast strong echogenicity. The echogenic puncture needle tip hovers precisely next to the nerve target, ensuring a safe block.

Premium Materials & Complete Specifications

Bilateral Back Bevel
Precisely machined needle tip design separates rather than cuts tissue fibers, providing smoother insertion and enhanced accuracy for Peripheral Nerve Block Needle applications.
304 Medical Stainless Steel
High elasticity provides excellent flexibility and reduces breakage risk during peripheral nerve block procedures.
500mm TPU Extension Tube
Flexible polyurethane material provides safe, smooth injection for Ultrasound Visible Nerve Block and regional anesthesia procedures.

Model	Specification
AN-M	20G(0.9×70)	21G(0.8×120)	23G(0.6×60)
	20G(0.9×90)	21G(0.8×150)	23G(0.6×70)
	20G(0.9×100)	22G(0.7×50)	24G(0.55×50)
	20G(0.9×120)	22G(0.7×60)	24G(0.55×60)
	20G(0.9×150)	22G(0.7×70)	24G(0.55×70)
	21G(0.8×70)	22G(0.7×80)	25G(0.5×50)
	21G(0.8×80)	22G(0.7×90)	25G(0.5×60)
	21G(0.8×90)	22G(0.7×100)	25G(0.5×70)
	21G(0.8×100)	23G(0.6×50)
AN-N	20G(0.9×70)	21G(0.8×100)	23G(0.6×50)
	20G(0.9×90)	21G(0.8×120)	23G(0.6×70)
	20G(0.9×100)	21G(0.8×150)	24G(0.55×50)
	20G(0.9×120)	22G(0.7×50)	24G(0.55×70)
	20G(0.9×150)	22G(0.7×70)	25G(0.5×50)
	21G(0.8×70)	22G(0.7×80)	25G(0.5×70)
	21G(0.8×80)	22G(0.7×90)
	21G(0.8×90)	22G(0.7×100)
